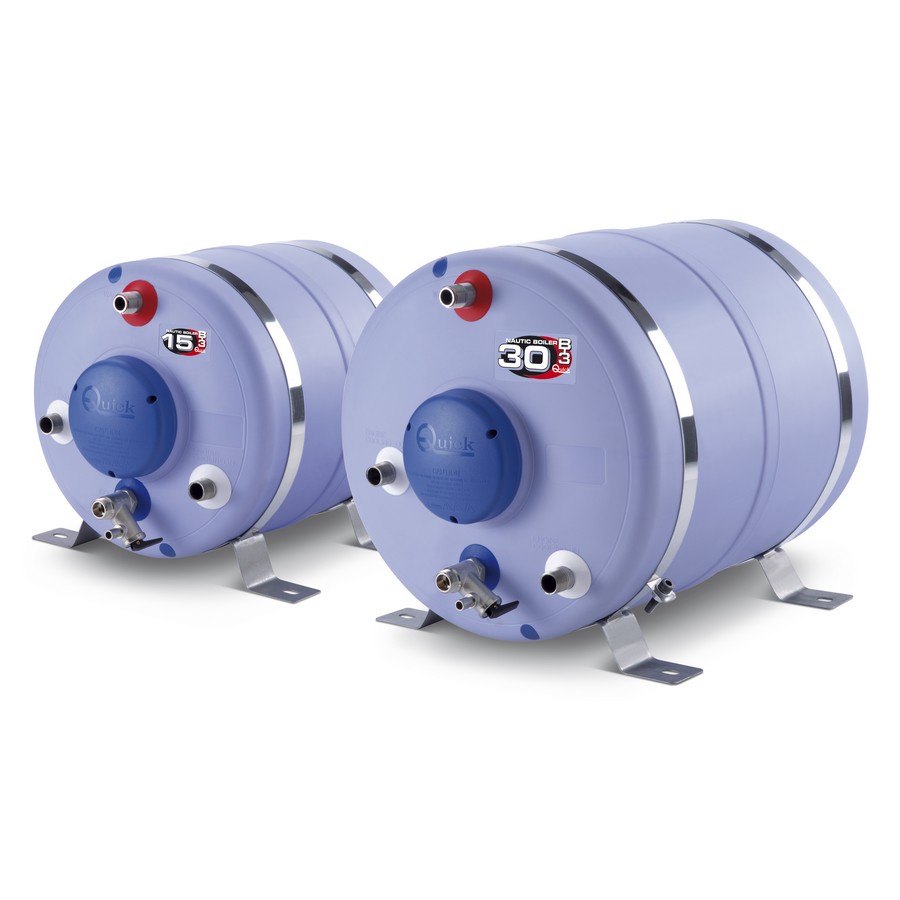

Quick Water Heater B3 20L
The Quick Model B3 is a round water heater that produces water from an incoloy electric heating element that is fitted with an adjustable safety bi-thermostat. This unit is equipped with a heat exchanger composed of AISI 316L stainless steel with a capacity that is notably higher than that achieved from other manufacturers. The interior of the tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas which enables it to be highly resistant to corrosive agents. The exterior of the tank is composed of a highly durable plastic composite material. The unit has thermal insulation composed of high density polyurethane foam which is injected between the cover and tank thus providing excellent heat retention properties. The B3 unit also comes with adjustable metal brackets which provide more flexibility for mounting when dealing with tight spaces. This unit comes equipped with the Water heater, Mounting Brackets, and 4 brass fittings.
| Models | B3 20 |
| Tank capacity – L | 20 L |
| Tank material | Stainless steel |
| Thermal insulating | Polyurethane foam |
| External cladding material | Composite |
| Tank pressure (running test) | 800 kPa (1) |
| Maximum working pressure | 600 kPa (1) |
| Electric element voltage rating (2) | 220 Vac ± 10% – (110 Vac ± 10%) |
| Electric element power (2) | 500 W [Model 05] – 600 W [Model 06] (4) – 1200 W [Model 12] |
| Outputs diameter | 1/2″ |
| Weight with heat exchanger (3) – lb | 17.9 |
| Model | 20 L |
| Length | 500 |
| (19″ 11/16) | |
| Height | 316 (12″ 7/16) |
| Diameter | Ø 300 (11″ 13/16) |
MODEL:
B3 20L 220v
