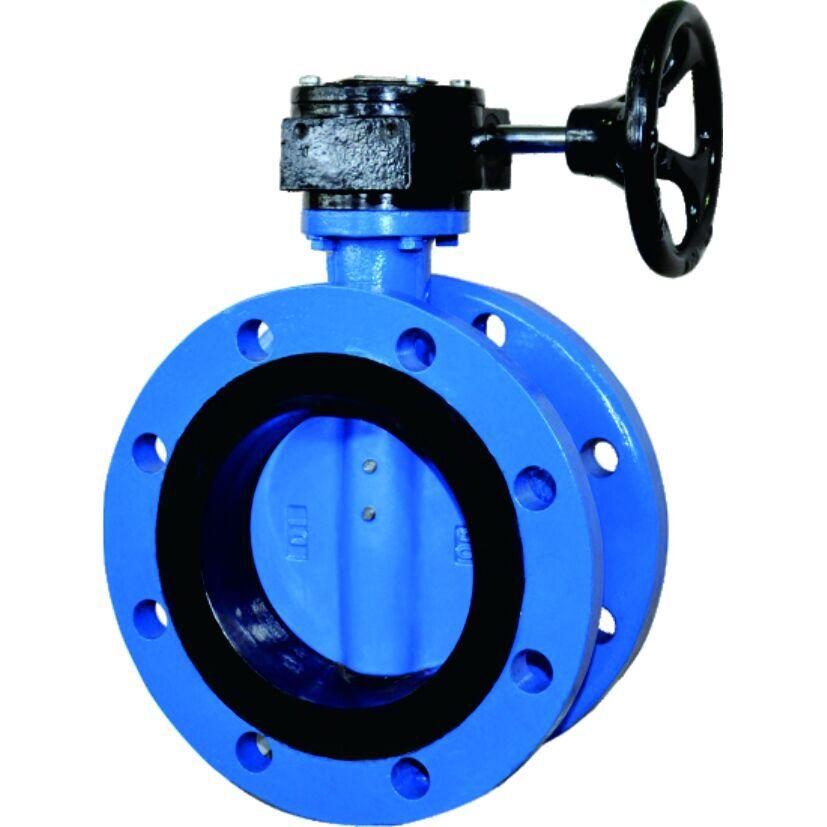

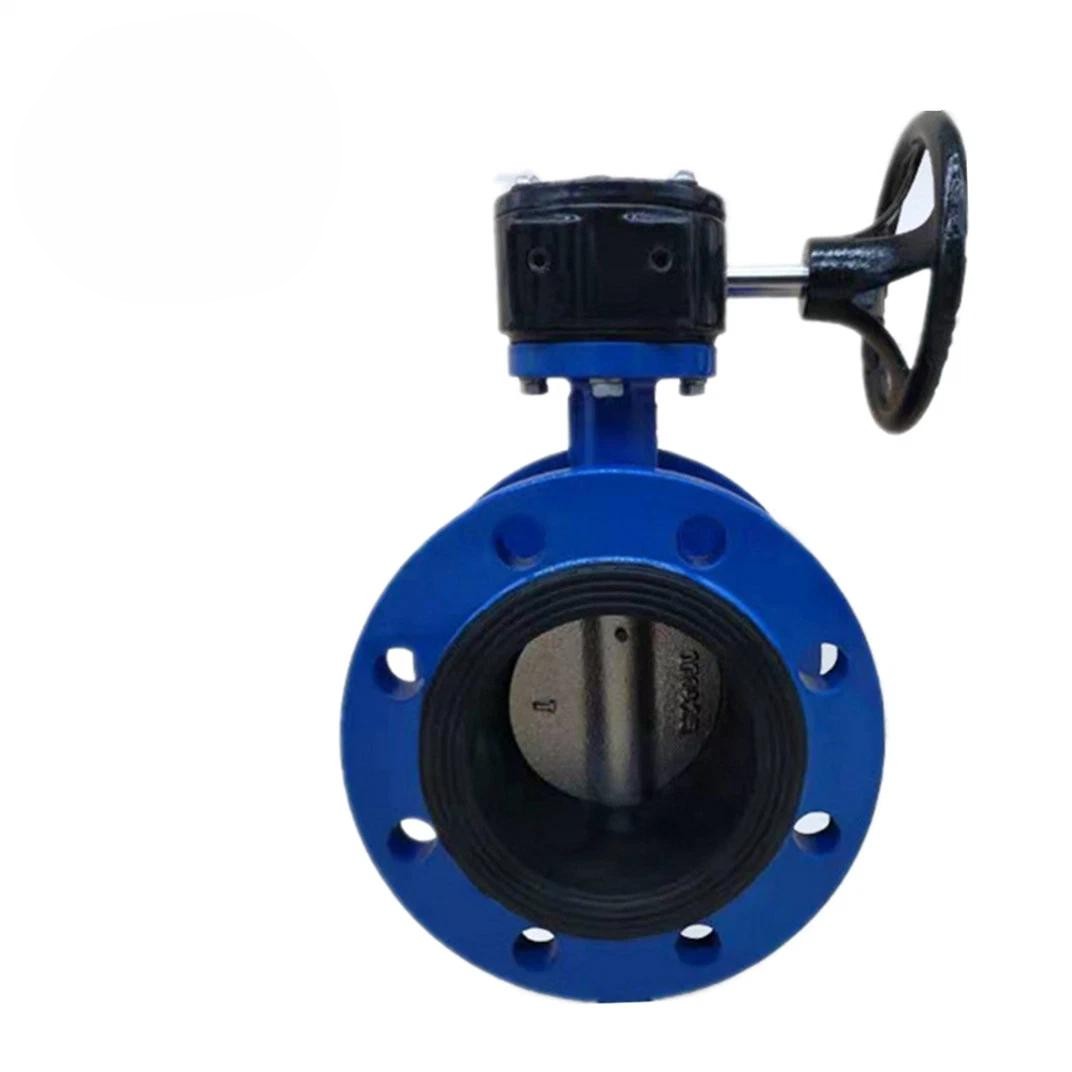

ACE Valve AV-CFR Flanged Butterfly Valve
| Parameter | Specification |
|---|---|
| Valve No. | BA-001 |
| Valve Type | Butterfly Valve |
| Model | AV-CFR |
| Connection Type | Flanged (AV-CFR series) |
| Valve Design | Concentric Rubber-Lined Butterfly Valve |
| Nominal Size | 300A (DN300 / 12") |
| Flange Standard | JIS 5K |
| Operation | Manual (Hydraulic Drawing Reference) |
| Application | Ballast System Isolation Valve |
| Equipment | Ballast Valves |
| Drawing No. | CWR0214AAA |
| Maker | ACE Valve Co., Ltd. |
| Project/Owner | F.P.T. BHD |
Description
The ACE Valve AV-CFR is a concentric flanged rubber-lined butterfly valve designed for isolation service in marine and industrial piping systems. It provides bubble-tight shut-off and is suitable for ballast, seawater, freshwater, and general utility applications. The AV-CFR series is available in JIS, ANSI, DIN, and BS flange standards with sizes up to DN3000.
Typical Technical Specifications
- Type: Concentric Flanged Butterfly Valve
- Model: AV-CFR
- Size: DN300 (300A / 12")
- Pressure Rating: JIS 5K
- Temperature Range: -20°C to +200°C (depending on seat material)
- Seat: Replaceable Rubber Liner (typically EPDM or NBR)
- Operation: Manual Gear Operator
- Body Material: Ductile Iron or Cast Iron (depending on specification)
- Disc Material: Ductile Iron/Nickel-Plated or Stainless Steel (as specified)
- Stem Material: Stainless Steel
- Applicable Media: Ballast Water, Seawater, Fresh Water, Cooling Water, General Service
