| CODE | MODEL | Availability | Price | ||
|---|---|---|---|---|---|
 | SK-DP3D1000W12V8 |
In stock
| Contact us for a price | ||
 | SK-DP3D1000W24V8 |
In stock
| Contact us for a price | ||
 | SK-DP3D1500W12V10 |
In stock
| Contact us for a price | ||
 | SK-DP3D1500W24V10 |
In stock
| Contact us for a price | ||
 | SK-DP3D700W12V8 |
In stock
| Contact us for a price | ||
 | SK-DP3D700W24V8 |
In stock
| Contact us for a price |
Please sign in so that we can notify you about a reply

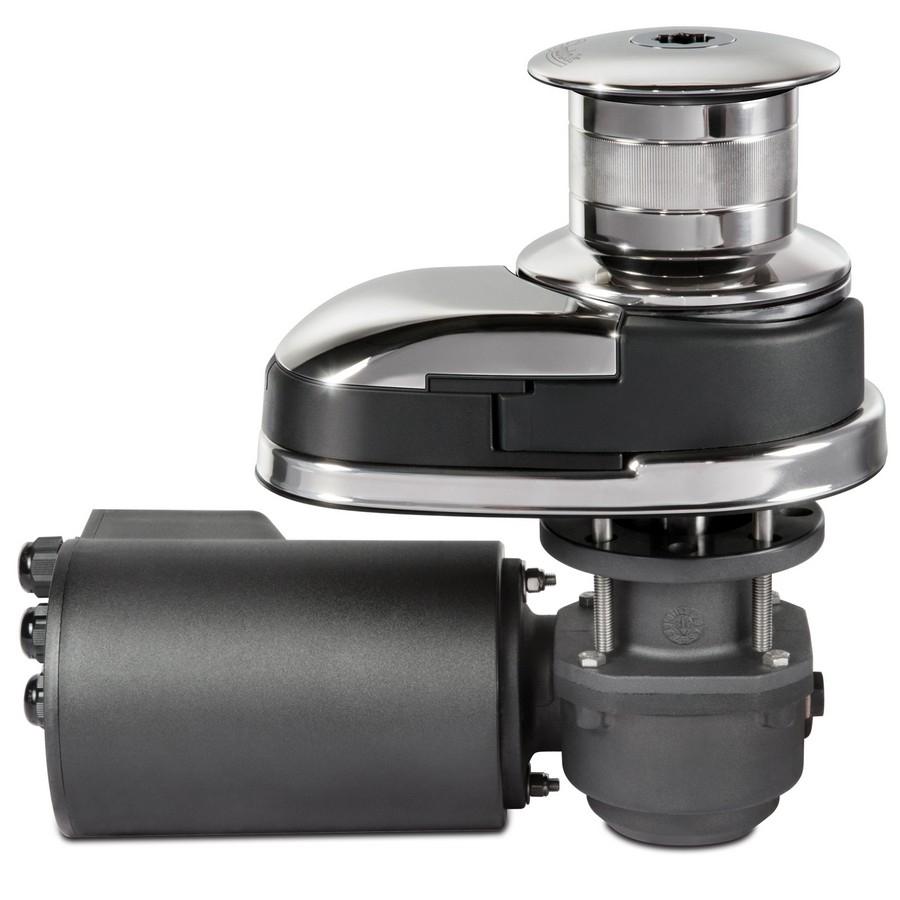

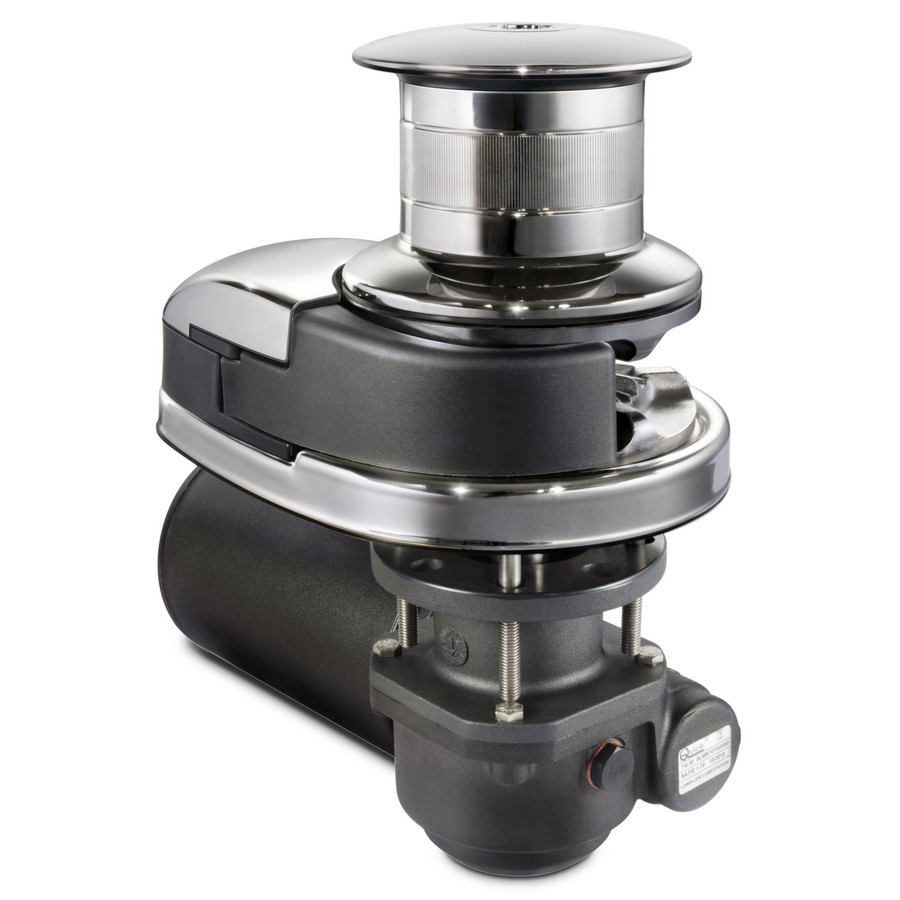

Quick DP3 Vertical Windlass 700W 24V with Drum
The Prince DP3 is a vertical application windlass with a drum perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| Standard version | DP3 700 D |
| Motor power | 700 W |
| Motor supply voltage | 24 V |
| For boats size | 7 – 10 m/23 – 33 ft |
| Gypsy | Chain-8 mm,DIN 766/Rope-9/16″ |
| Maximum pull | 1499.2 lb |
| Maximum working load | 661.4 lb |
| Working load | 220.5 lb |
| Current absorption @ working load (1) | 50 A |
| Maximum chain speed (2) | 86.6 ft/min |
| Maximum chain speed @ working load (2) | 47.2 ft/min |
| Weight – DP3 D – [with drum] | 39.6 lb |
MODEL:
700W24V W/D
Google export features
Brand:
quick nautical equipment
